HDPE Silicon-core Pipe

Short Description:

1. Product Name: Product Name
2. Material: HDPE
3. Color: Black,red,blue,yellow,green,purple
4. Application: Cable protection
5. Tensile strength: ≥21 (MPa)
Maximum traction load: ≥8000(N)
6. Elongation at break: ≥350
7. Operating temperature range: -60℃~60℃
8. Standard: JG/T 496-2004
9. Length: 1000m/2000m/roll or Customized
10. Thickness: 2.0-6.0mm
11. Standard: GB/T 24456-2009 JT/T 496-2004
12. Guarantee: More than 70 years

INQUIRY

Details

Product Description:
HDPE Silicon Core Pipes, also known as silicon-lined HDPE pipes, are an innovative solution in the field of cable protection and telecommunications. These pipes combine the durability and flexibility of High-Density Polyethylene (HDPE with the smoothness of silicon for efficient cable installation and protection.

Performance of HDPE Silicon Core Pipes：
Low Friction inner Layer: he inner layer of silicon provides a smooth surface, significantly reducing the friction during cable installation. This allows for longer cable runs and easier cable blowing or pulling.
High Durability and Strength: Made from HDPE, these pipes are tough, resistant to impact, and can withstand various environmental stresses, including temperature fluctuations and physical disturbances.
Flexibility and Bendability: The flexibility of HDPE makes these pipes adaptable to diferent terrains and conditions, They can be beniaround obstacles without breaking, facilitating easier installation.
Chemical Resistance and Water-Proof: HDPE is resistant to many chemicals and does not absorb moisture, ensuring the protection of cables in diverse environmental conditions.
UV Resistant: The outer layer of these pipes is UV stabilized, making them suitable for outdoor applications without the risk ofdegradation from sun exposure.

Applications of HDPE Silicon Core Pipes：

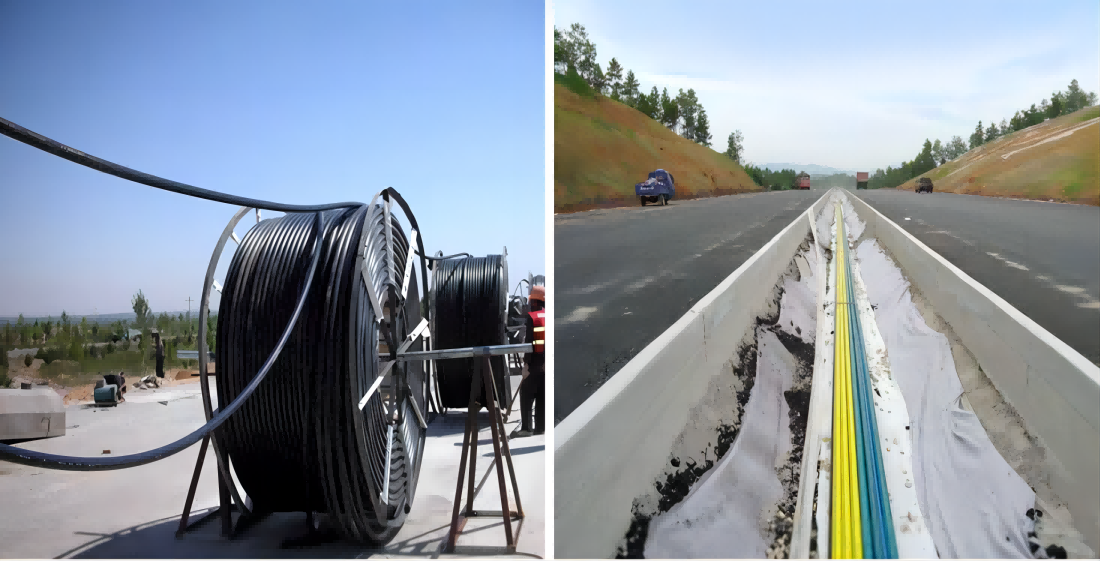

Telecommunication Networks: They are extensively used in the installation of fiber optic cables for telecommunication networks ensuring a smooth and efficient deployment.
Cable Television Networks: ldeal for the protection of coaxial cables used in cable TV networks.
Intelligent Traffic Systems: Used in traffic management systems, such as for housing sensors and communication cables.
Data Centers and lT infrastructure: facilitate the safe and efficient routing of cables in data centers and other lT infrastructure Underground.

Electrical installations: Suitable for protecting electrical cables from moisture and mechanical damage.
